Spider Crane

One of the most versatile pieces of lifting equipment available on the market. Our C6 mini crane, or ‘spider crane’ is easy to operate and incredibly powerful – supplied with an operator it can lift up to 3 tonnes but still fit through a standard doorway when folded. This makes it perfect for jobs like placing glass or moving steel beams.

It’ll get into spaces no other piece of lifting equipment can reach, we’ve moved boat engines right through to telephone boxes & hot tubs. We’ve even squeezed through a garage and placed a beautiful bath through an upstairs window without a mark on it ready to be plumbed in, with our C6 spider crane hire you can work smarter, not harder!

  • Capacity: 3,000 kg

    Boom outreach: 9.25 m, and 13.7 m with options

    Hoisting height max: without jib 11.5 m, and 17 m with options

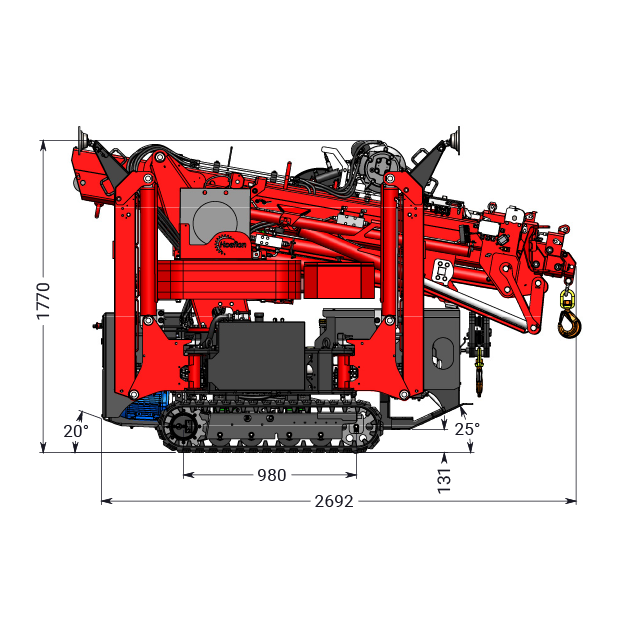

    Transport dimensions: LxWxH 2.9 m x 0.75 m x 1.82 m

    Total weight: 2,650 kg, and 2,850 kg with options

    Boom angle: -5° to 83°

    Boom system: cylinder and chain system

    Slewing angle: 360°

    Driving speed 1st gear: 1.1 km/h

    2nd gear: 2.2 km/h

    Engine: Yanmar 3-cylinder diesel

    Inclination angle, driving: 20°

    Outrigger pressure: 2,800 kg per outrigger

    Ground pressure, tracks: 0.79 kg/cm²

    Extedible, removable ballast: 600 kg

    Noise: 75
