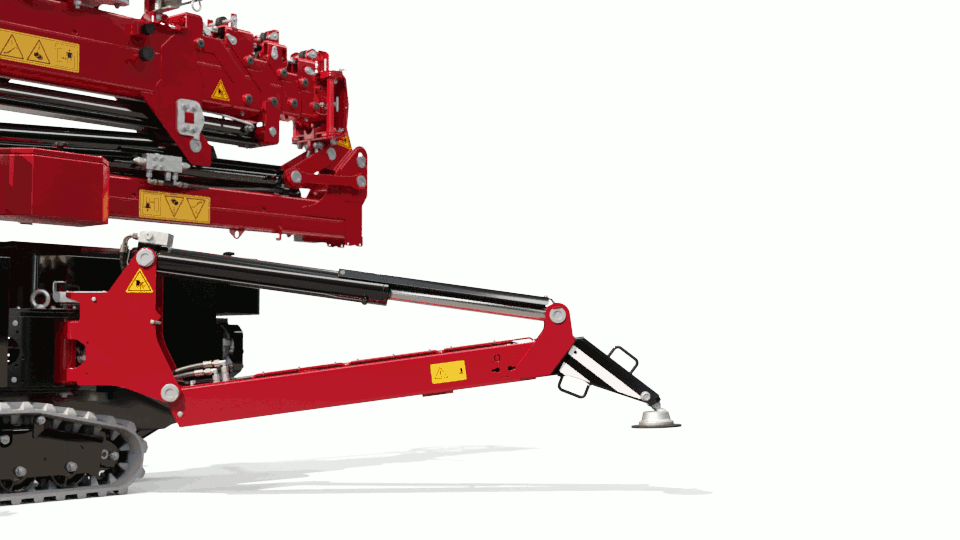

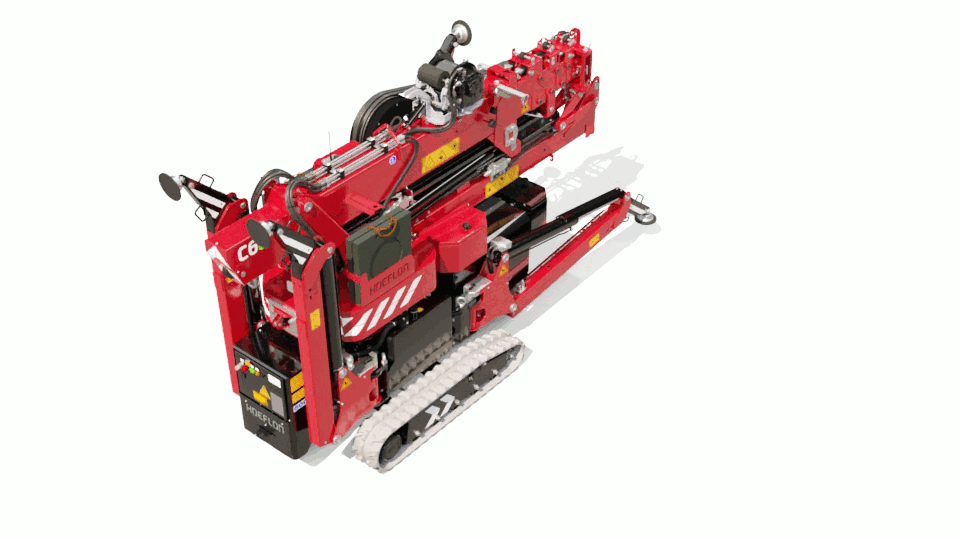

Spider Crane
Multifunctional, robust and very simple operation – that’s the our spider crane in a nutshell. This crane is ideal for placing glass and accurately positioning steel beams.
It is the only compact crane that can lift more than its own weight. This makes it possible for one crane to lower another into an underground space.
-
Capacity: 3,000 kg
Boom outreach: 9.25 m, and 13.7 m with options
Hoisting height max: without jib 11.5 m, and 17 m with options
Transport dimensions: LxWxH 2.9 m x 0.75 m x 1.82 m
Total weight: 2,650 kg, and 2,850 kg with options
Boom angle: -5° to 83°
Boom system: cylinder and chain system
Slewing angle: 360°
Driving speed 1st gear: 1.1 km/h
2nd gear: 2.2 km/h
Engine: Yanmar 3-cylinder diesel
Inclination angle, driving: 20°
Outrigger pressure: 2,800 kg per outrigger
Ground pressure, tracks: 0.79 kg/cm²
Extedible, removable ballast: 600 kg
Noise: 75 dBcription text goes here
